MM60-52B1-E1-R650
Manufacturer:
JAE Electronics
Mfr.Part #:
MM60-52B1-E1-R650
Datasheet:
Description:

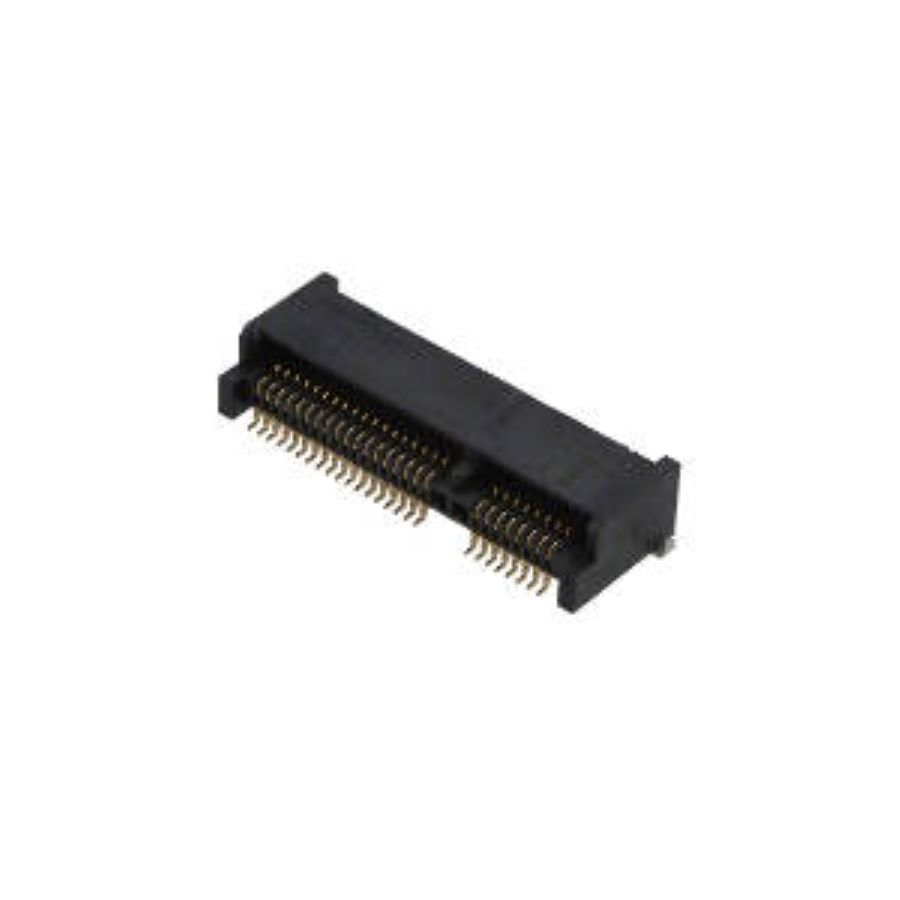

Edgeboard Connectors SMD/SMT Female Vertical Number of Positions:100
| Parameter | Value |
|---|---|
| Length | |
| Width | |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | |
| Packaging | Reel |
| RoHS | Compliant |
| Manufacturer Package Identifier | |
| REACH SVHC | |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 0.8 mm |
| Current Rating | |
| Flammability Rating | |
| Gender | Female |
| Number of Contacts | |
| Connector Type | |
| Contact Type | |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing | |
| Insulation Material | |
| Card Thickness | 1 mm |
| Housing Material | Plastic |
| Contact Resistance | |
| Mounting Angle | Vertical |
| Card Type | PCI Express Mini Card |
Stock: 960
Distributors
pcbx
pcbxUnit Price$1.74115
Ext.Price$1.74115
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.74115 | $1.74115 |
| 10 | $1.51517 | $15.15170 |
| 25 | $1.42671 | $35.66775 |
| 50 | $1.34342 | $67.17100 |
| 100 | $1.26498 | $126.49800 |
| 300 | $1.23369 | $370.10700 |
| 500 | $1.20318 | $601.59000 |
| 1000 | $1.17341 | $1173.41000 |
